Winnebago View Motor Home Class C - Diesel RVs For Sale

Previous
Next
1 of 30

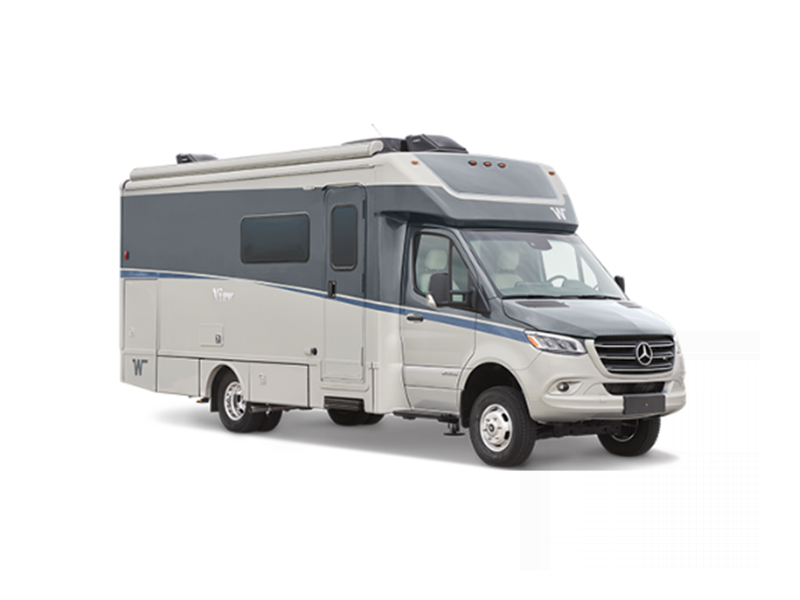

The Winnebago View Class C diesel motorhomes will offer you the ultimate freedom and versatility with industry-leading amenities that will redefine your RV experience.

The Mercedes-Benz RWD sprinter chassis is a name you can trust, and model 24T even has an AWD option for even better handling. The MBUX touchscreen multimedia infotainment system will make the drive easier than ever with features such as intelligent voice control, navigation, and a rear camera. You'll enjoy laminate countertops inside, along with tinted coach windows, an Oxygenics flexible showerhead, and many more comforts.

Let a new View Class C diesel motorhome be your next travel companion!
  • Specifications

    Sleeps 6
    Slides 1
    Length 25 ft 6 in
    Ext Width 7 ft 7 in
    Ext Height 11 ft
    Int Height 6 ft 8 in
    Interior Color Harmony, Harmonious
    Exterior Color Stellar Standard Graphics. Bay Mist ll, Glacier, Mineral ll Full-Body Paint
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 41 gals
    Black Water Capacity 41 gals
    Furnace BTU 20000 btu
    Generator 3,600 Watt LP
    Fuel Type Diesel
    Engine 2.0L High Output Turbo Diesel 4-Cylinder
    Chassis Mercedes Benz RWD Sprinter
    Fuel Capacity 24.5 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Murphy
    Refrigerator Type Two Door Compressor Driven
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 32"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 50.76 lbs
    Water Heater Type Truma AquaGo Comfort Plus Tankless
    AC BTU 15000 btu

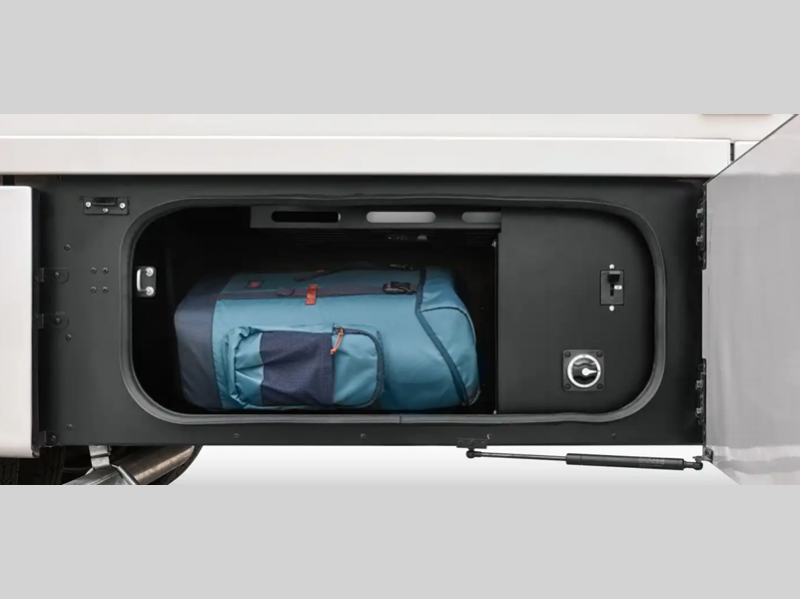

    Basement Storage 30 cu. ft.
    TV Info Coach 32" HDTV
    Awning Info 16' Power with LED Lights & Bluetooth Control
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • View 24J

    View 24J Floorplan Image

    Take a Virtual Tour

    Winnebago View Class C diesel motorhome 24J highlights: 50" x 79" Bed Pantry ... more about View 24J

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 25 ft 6 in
    Ext Width 7 ft 7 in
    Ext Height 11 ft
    Int Height 6 ft 8 in
    Interior Color Harmony, Harmonious
    Exterior Color Stellar Standard Graphics. Bay Mist ll, Glacier, Mineral ll Full-Body Paint
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 41 gals
    Black Water Capacity 41 gals
    Furnace BTU 20000 btu
    Generator 3,600 Watt LP
    Fuel Type Diesel
    Engine 2.0L High Output Turbo Diesel 4-Cylinder
    Chassis Mercedes Benz RWD Sprinter
    Fuel Capacity 24.5 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Full
    Refrigerator Type Two Door Compressor Driven
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 32"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 50.76 lbs
    Water Heater Type Truma AquaGo Comfort Plus Tankless
    AC BTU 15000 btu
    Basement Storage 43 cu. ft.
    TV Info Coach 32" HDTV, BR 24" LED HDTV
    Awning Info 16' Power with LED Lights & Bluetooth Control
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • View 24T

    View 24T Floorplan Image

    Take a Virtual Tour

    Winnebago View Class C diesel motorhome 24T highlights: Rear Bath Murphy+ Bed ... more about View 24T

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 25 ft 8 in
    Ext Width 7 ft 7 in
    Ext Height 10 ft 7 in
    Int Height 6 ft 8 in
    Interior Color Hygge Haus ll, Mod Allure ll

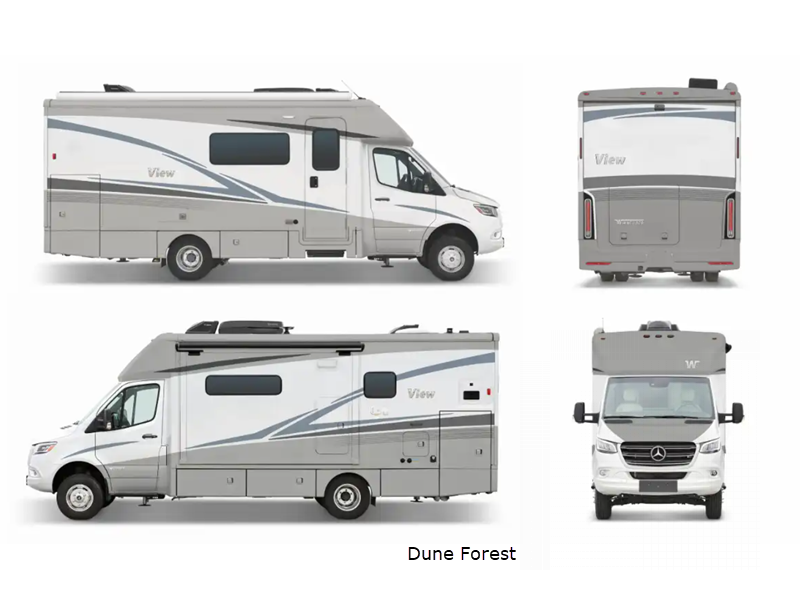

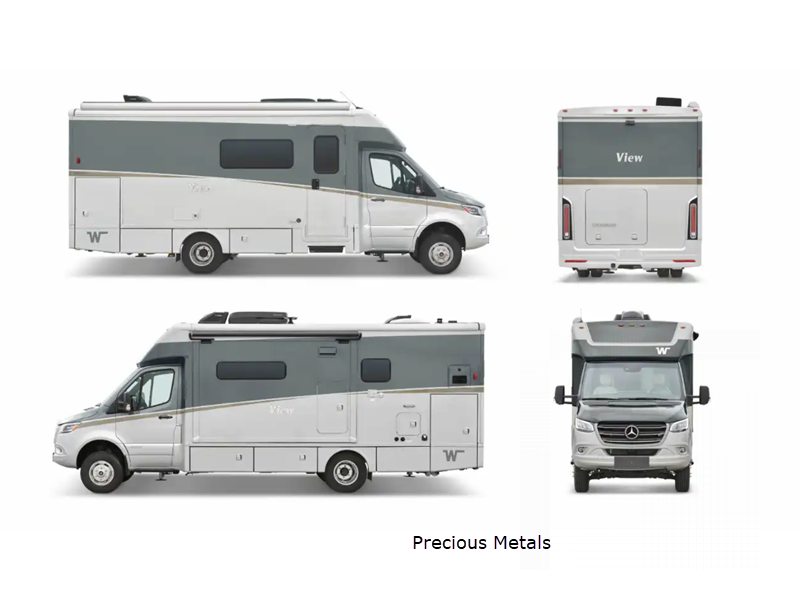

    Exterior Color Dune Frost Deluxe Graphics. Misty Lake, Precious Metals, Smokehouse Full-Body Paint
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 46 gals
    Black Water Capacity 47 gals
    Furnace BTU 25000 btu
    Fuel Type Diesel
    Engine 2.0L High Output Turbo Diesel 4-Cylinder
    Chassis Mercedes-Benz RWD Sprinter
    Fuel Capacity 24.5 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Murphy
    Refrigerator Type 12V Two Door Compressor Driven
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 34"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 50.76
    Water Heater Type Truma AquaGo Comfort Plus Tankless
    AC BTU 15000 btu
    Basement Storage 80.9 cu. ft.
    TV Info 32" LED HDTV
    Awning Info 16' Power with LED Lights & Bluetooth Control
    Gross Combined Weight 15250 lbs
    Shower Type Shower w/Seat
    Electrical Service 30 amp

    Similar Floorplans

  • View 24V

    View 24V Floorplan Image

    Winnebago View Class C diesel motorhome 24V highlights: Convertible Twin Beds ... more about View 24V

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 25 ft 6 in
    Ext Width 7 ft 7 in
    Ext Height 11 ft
    Int Height 6 ft 8 in
    Interior Color Harmony, Harmonious
    Exterior Color Stellar Standard Graphics. Bay Mist ll, Glacier, Mineral ll Full-Body Paint
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 31 gals
    Grey Water Capacity 41 gals
    Black Water Capacity 41 gals
    Furnace BTU 20000 btu
    Generator 3,600 Watt LP
    Fuel Type Diesel
    Engine 2.0L High Output Turbo Diesel 4-Cylinder
    Chassis Mercedes Benz RWD Sprinter
    Fuel Capacity 24.5 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Two Twin
    Refrigerator Type Two Door Compressor Driven
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 19" x 28" x 34"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 50.76 lbs
    Water Heater Type Truma AquaGo Comfort Plus Tankless
    AC BTU 15000 btu
    Basement Storage 33.6 cu. ft.
    TV Info Coach 32" HDTV, BR 24" LED HDTV
    Awning Info 16' Power with LED Lights & Bluetooth Control
    Gross Combined Weight 15250 lbs
    Shower Type Angled
    Electrical Service 30 amp

    Similar Floorplans

View Features:

Standard Features (2025)



Chassis

  • Mercedes-Benz® RWD Sprinter Chassis
  • 2.0L high-output, turbo-diesel 4-cylinder engine, 9-speed automatic transmission with overdrive, 250-amp alternator
  • LED High Performance headlamps (24T Only)
  • Adaptive ESP technology
  • Hydraulic brakes w/ABS (N/A 24T)
  • Trailer Hitch: 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
  • Stylized aluminum wheels
  • Hydraulic leveling jack w/automatic controls (front and rear) (24T Only)

Optional Equipment

  • Hydraulic leveling jacks w/automatic controls (front and rear) (24D, 24J, 24V)
  • Mercedes-Benz® AWD Sprinter Chassis 2.0L high-output, turbo-diesel 4-cylinder engine, 9-speed automatic transmission with overdrive, 250-amp. alternator (requires Low Profile Front Cap) (24T Only)

Cab Conveniences (24D, 24J, 24V Only)

  • MBUX® Touchscreen Multimedia Infotainment Center with Navigation, WiFi hotspot, Intelligent Voice Control and Rear Color Camera
  • Airbags driver, passenger, side and curtain
  • Heated power control cab seats — armrest, adjustable lumbar support, headrest, recline, slide, and manual swivel
  • 3-point seat belts
  • Climate control
  • Leather-wrapped steering wheel
  • Power door locks w/remote
  • Power windows
  • Power mirrors w/defrost and turn signals
  • Cruise control
  • Active lane keeping assist
  • Active braking assist
  • Rain sensor w/integrated wet wiper system
  • Power assist steering w/tilt wheel
  • 12V/USB powerpoints
  • Folding windshield and cab window blinds
  • Dash appliqué package
  • 2 cab seat lounge cushions
  • Hill start assist
  • Crosswind assist
  • Attention assist

Cab Conveniences (24T Only)

  • MBUX® touchscreen multimedia infotainment system with navigation, satellite radio, Wi-Fi hotspot, intelligent voice control, SiriusXM®, Apple CarPlay®, Android Auto™, Bluetooth®, and rear camera
  • Mercedes me connect vehicle app
  • Heated power control cab seats, memory control, armrest, adjustable lumbar support, headrest, recline, slide, and manual swivel
  • 3-point seat belts
  • Airbags driver, passenger, side, and curtain
  • Power assist steering w/tilt wheel
  • Digital rearview mirror
  • Blind spot monitoring system (late availability)
  • Active brake assist
  • Lane keeping assist
  • Attention assist
  • Hill start assist
  • Crosswind assist
  • Rain sensor w/integrated wet wiper system
  • DISTRONIC PLUS® (adaptive cruise control)
  • Power mirrors w/defrost and turn signals
  • Auto headlamps w/high beam assist
  • Automatic climate control
  • Power door locks w/remote
  • Power windows
  • Dash charging station w/wireless charging, 12-volt, and USB powerpoints
  • Dash appliqué package
  • Sunvisors
  • Thermal cab windows and windshield blinds
  • Leather-wrapped steering wheel
  • 2 cab seat lounge cushions

Optional Equipment

  • Cab seats w/Ultrafabrics® UF Select covering

Electrical System (24D, 24J, 24V Only)

  • Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
  • Automatic dual battery charge control
  • Exterior AC duplex
  • Exterior antenna jack
  • Generator auto transfer switch
  • Battery disconnect system (coach)
  • AC/DC load center/converter unit
  • 2 deep-cycle, Group 31 RV batteries
  • 3,600-watt LP generator
  • 2,000-watt pure sine wave DC/AC inverter
  • (2) 100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel

Optional Equipment (24D, 24J, 24V Only)

  • Lithium Ion Smart Batteries
  • 3,200-watt Diesel generator

Electrical (24T Only)

  • (1) 320-amp-hour 12V Lithionics® lithium battery w/Bluetooth control package and battery pack heating system
  • Coach battery disconnect system
  • AC/DC load center/converter unit
  • Dedicated 280-amp. second alternator to charge coach batteries
  • Exterior AC duplex receptacle
  • Exterior TV jack
  • 30-amp. power cord
  • Service Center w/light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
  • (2) 120-watt flexible surface solar panel/battery charger controller, junction box, and plug for additional portable solar panel
  • 2,000-watt pure sine wave DC/AC inverter
  • WiFi router

Optional Equipment (24T Only)

  • RVMP® 3800W LP generator w/auto transfer switch and auto start system (N/A w/Generator Replacement Package)
  • Generator Replacement Package includes 960-amp-hour 12V Lithionics® lithium battery pack w/Bluetooth® control package, battery pack heating system, and (4) 120-watt solar panels (N/A w/LP generator)

Interior (24D, 24J, 24V Only)

  • 32" HDTV
  • U-Shaped dinette (24D, 24J)
  • TrueComfort+ sofa w/table (24V)
  • LED lights
  • Satellite system ready
  • Amplified digital HDTV antenna
  • Powered roof vent — rain cover, electric lift, remote control, thermostat operation (front bunk)
  • MCD solar/blackout roller shades
  • Systems monitor panel
  • Tinted coach windows
  • Assist bar
  • Vinyl flooring throughout
  • Soft vinyl ceiling
  • 110V/12V/USB charging stations
  • Roof wiring access port
  • Toe kick lighting

Optional Equipment (24D, 24J, 24V Only)

  • Dual pane acrylic windows
  • Dual recliners w/table (24V)
  • Theater seating w/swivel tables (24D, 24J)
  • Entertainment System Blu-ray disc player and Bluetooth® Soundbar

Interior (24T Only)

  • Dimmable LED ceiling lights
  • Blackout roller shades (lounge & dining)
  • Tinted coach windows
  • Winnebago Connect™ 10" touchscreen w/available companion mobile app
  • Powered roof vent w/rain cover, electric lift, remote control, thermostat operation (front bunk/lounge)
  • Fold down dining table and chairs
  • Power reclining theater seating w/fold down center armest w/2 cupholders, USB charging outlets, and removable swive lap tables
  • Cabover bunk 49" x 75" (N/A w/ Low Profile Front Cap)
  • 32" LED HDTV
  • JBL Bluetooth® soundbar
  • Satellite system ready
  • Amplified digital TV antenna
  • Roof wiring access port
  • 120V, 12V, USB-A, USB-C charging ports throughout
  • Assist bar
  • Woven vinyl flooring throughout
  • Soft vinyl ceiling
  • Dimmable overhead accent LED lighting
  • Dimmable toe kick accent LED lighting

Optional Equipment (24T Only)

  • Dual-pane euro acrylic windows w/screen and cassette shade
  • Low Profile Front Cap with lighted storage

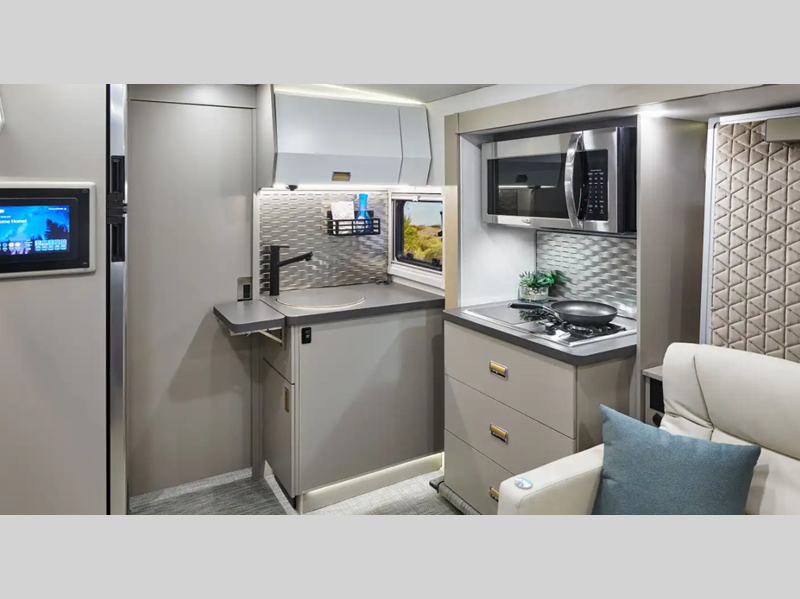

Galley (24D, 24J, 24V Only)

  • Laminate countertops
  • Microwave/convection oven w/touch control
  • 2-burner induction & LP range cooktop
  • 10.0 cu. ft. (12V) 2-door compressor-driven refrigerator/freezer
  • Cold water filtration system
  • Water-pump switch w/light
  • Pantry (24D, 24J)
  • Cabinets with accent lighting
  • Lighted soft close drawers
  • Integrated paper towel holder
  • Double stainless steel sink w/two sink covers
  • Mini blinds
  • Toe kick lighting

Galley (24T Only)

  • Laminate countertops
  • 2-burner induction & LP range cooktop
  • 1.6 cu ft OTR microwave/convection oven w/touch control
  • 10.0 cu. ft. (12V) 2-door compressor-driven refrigerator/freezer
  • Single stainless sink w/cover
  • Single control faucet w/sprayer
  • Pantry
  • Flip-up countertop extension
  • Pop-up outlet w/(2) 120V & (2) USB-A ports
  • Cold water filtration system
  • Water-pump switch
  • Mini blinds
  • Overhead cabinets w/dimmable LED accent lighting
  • Lighted soft-close drawers
  • Dimmable toe kick accent LED lighting

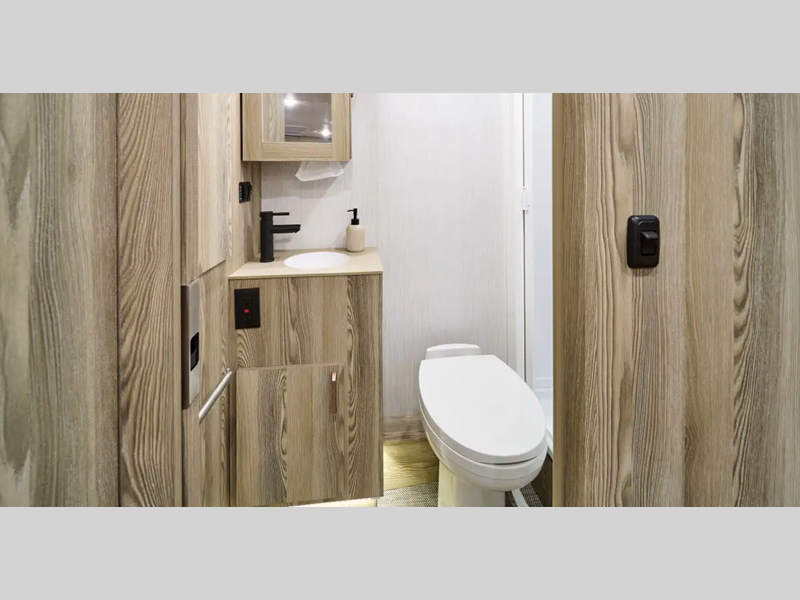

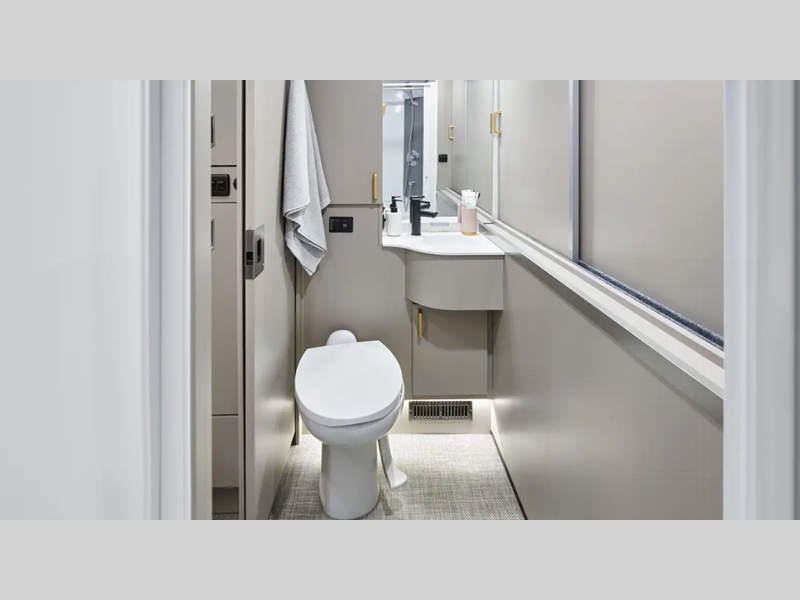

Bath (24D, 24J, 24V Only)

  • Shower 24" x 32" (24D, 24J)
  • Shower 19" x 28" x 34" (24V)
  • Retractable, self-cleaning shower screen
  • Oxygenics® flexible showerhead
  • Shower skylight
  • Porcelain toilet w/foot pedal and sprayer (24J, 24V)
  • Composite Toilet (24D)
  • Powered roof vent w/rain cover
  • Lavatory cabinet
  • Medicine cabinet
  • Mini blinds (24D)
  • Towel rack (24V)
  • Towel bar(s) (24J, 24V)
  • Tissue holder
  • Removable clothes rod
  • Robe hook(s)
  • Integrated facial tissue holder
  • Toe kick lighting

Bath (24T Only)

  • 30" x 34" shower w/built-in seat
  • Retractable, self-cleaning shower screen
  • Hand held flexible showerhead
  • Shower skylight
  • Porcelain toilet w/foot pedal
  • Full width wardrobe cabinet w/sliding doors, 2 drawers, and 3 shelves
  • Metal clothes rod in wardrobe
  • Removable clothes rod in shower
  • Powered roof vent w/rain cover
  • Lavatory cabinet
  • Tissue holder
  • Lightweight solid surface countertop w/integrated round sink
  • Linen cabinet w/adjustable shelves
  • Robe hook(s)
  • Dimmable toe kick accent LED lighting

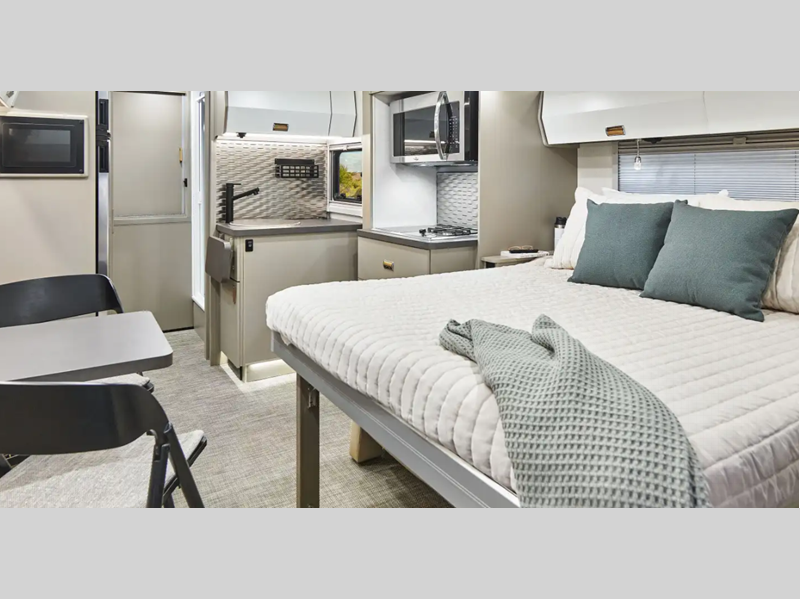

Bedroom (24D, 24J, 24V Only)

  • Murphy+ bed w/deluxe queen mattress, Euro-suspension system, gel foam topper (24D)
  • Corner bed w/headboard, foam mattress, mattress cover and access to storage below (24J)
  • Flex Bed System twin beds/king bed w/foam mattresses and access to storage below (24V)
  • FROLI® deluxe sleeping system (24J, 24V)
  • MCD blackout roller shades
  • Wardrobe cabinet
  • Metal clothes rod
  • Room divider curtain
  • Anything Keeper drop down storage above bed (24J, 24V)
  • 110V/12V/USB charging stations (24J, 24V)
  • 110V/USB charging station (24D)
  • 24" LED HDTV (24J, 24V)

Bedroom (24T Only)

  • 60" x 75" Murphy+ queen bed w/WinnSleep® System
  • 110V/12V/USB-A/USB-C charging ports
  • Reading lights

Exterior

  • Automatic entrance door step
  • LED porch light w/interior switch
  • Stepwell light w/interior switch

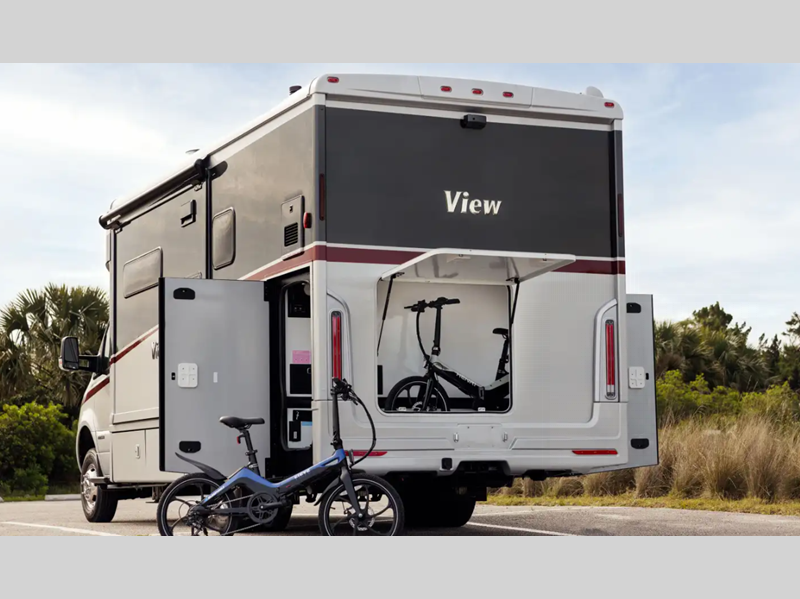

  • Heated gear garage w/L-track cargo tie down system, 110V/12V charging ports, and LED lighting (24T Only)
  • Front and rear mud flaps
  • Aluminum cab steps w/logoed tread and loop attachment
  • Powered patio awning w/LED lights and Bluetooth® control
  • Large pass-through storage compartment (24D, 24J)
  • Ladder (N/A 24T)

Heating & Cooling System

  • 15,000 BTU air conditioner w/heat pump
  • 20,000 BTU low-profile ducted furnace (24D, 24J, 24V)
  • 25,000 BTU low-profile ducted furnace (24T)

Plumbing System (24D, 24J, 24V Only)

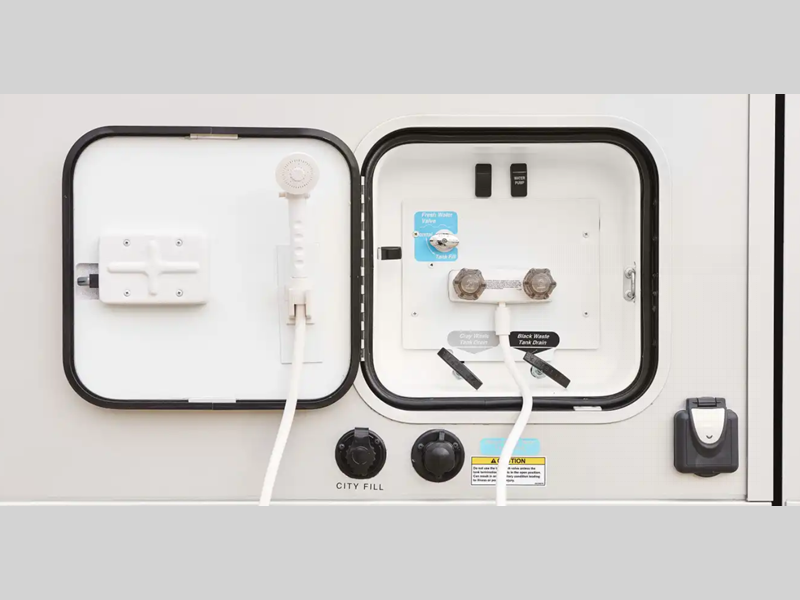

  • Service Center — color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch
  • Truma AquaGo® Comfort Plus Tankless water heater
  • TrueLevel™ holding tank monitoring system
  • Heated drainage system
  • 10' sewer hose
  • Winterization Package water heater bypass valve and siphon tube
  • On-demand water pump
  • Lockable water tank fill
  • Sewage pump macerator (24V)
  • Permanent-mount LP tank w/gauge
  • LPG accessory connection (patio area)
  • Black holding tank flushing system

Plumbing System (24T Only)

  • Insulated water service center houses color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch
  • Truma AquaGo® Comfort Plus tankless water heater w/ recirculation pump
  • 12V heated drainage system
  • 10' sewer hose
  • Winterization Package water heater bypass valve and siphon tube
  • On-demand water pump
  • Lockable water tank fill
  • Permanent-mount LP tank w/gauge
  • LPG accessory connection (patio area)
  • Black holding tank flushing system

Safety

  • LPG leak, smoke and carbon monoxide detectors
  • Fire extinguisher
  • Ground fault interrupter
  • Child seat tether anchor (24D, 24J)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Winnebago
Who We Are:
Winnebago Industries, Inc. is a leading U.S. manufacturer of outdoor lifestyle experiences under the Winnebago, Grand Design, Chris-Craft and Newmar brands. The Company builds quality motorhomes, travel trailers, fifth wheel products and boats with multiple facilities in Iowa, Indiana, Minnesota and Florida. Our common stock is listed on the New York Stock Exchange and is traded under the symbol WGO. Winnebago Industries was incorporated under the laws of the state of Iowa on February 12, 1958, and adopted its present name on February 28, 1961.

Our Values represent our deepest beliefs and direct our actions at work every day. Our Guiding Principles ensure we lean forward and create lifelong advocates across our family of brands.

We respect our roots and legacy of success; we do not rest on them. We work to understand our customers’ unmet needs and develop an experience that creates lifelong advocates. Our employees are driven and caring. We strive to develop the best talent possible and enable a culture of servant leadership. We embrace thoughtful change in order to deliver market leadership as well as superior profitability.

We will work strategically with our channel partners to help them succeed. We will continue to build respected brands that will be among our greatest assets. In every part of our company, we relentlessly pursue continuous improvement and enhanced productivity, driving out waste, and creating meaningful strategic differentiation.
